structured light camera

my capstone project at OSU

This is easily one of my favorite projects I’ve worked on. It combines computer vision algorithms with web development and microcomputer programming in a way that produces a dazzling spectacle of a result - this result being a 3D representation of a real-world object! My experience with computer vision before starting this project was shaky at best. I couldn’t tell you what the term “structured light” meant, nor how stereo vision works. I will go into more detail as to what these mean, and how these concepts come together to create a system capable of synthesizing 3-dimensional objects.

To get started, I should explain what this project is.

general setup

A structured light camera is a system consisting of a camera and a projector (like what you would find in a conference room). Using a controller computer, the system synchronizes the camera and projector in order to capture unique images of an object. This controller sends patterned images to the projector, then captures image input from the camera for each image. From these 2D images, the system uses some complex 3D linear algebra to estimate a 3rd dimension for each pixel.
a cup being scanned by the structured light camera

coordinate math

At its core, structured light is a problem of triangulation. We know the locations of two points: a pixel of the projected image, and a pixel of the image captured by the camera. Since the projector and camera are oriented at two different places in space, the pixels are points in different coordinate systems. This means that their positions are defined by terms. We can work around this by looking at the physical relationships between the camera and projector.

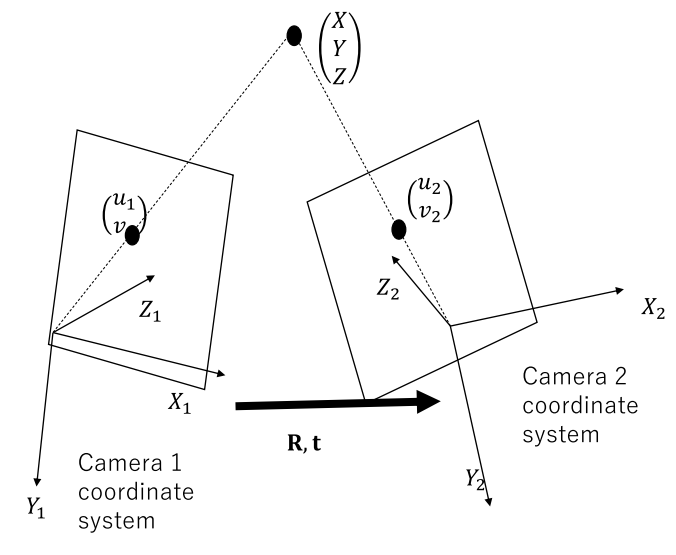

a representation of points mapping from one system to another in order to triangulate
These are mathematically defined by the extrinsic parameters, represented by the matrix R and the vector t in the image to the left.
  • The matrix R is known as the rotation matrix. This specifies the roll, pitch, and yaw rotations needed to map a projector coordinate to a camera coordinate. Applying these rotation transformations to one of the camera or projector results in both of these systems being parallel.
  • The vector t is known as the translation vector. This specifies the distance and direction to move the camera or projector to the other. Applying the translation to one of these results in both of these systems being located at the same location.

So, using both the R and t, we can map points from one coordinate system into the other. Since we now know pairs of points within the same coordinate system, we can approach this as a triangulation problem as we originally intended.

implementation

Now, for the iteration I worked on, here’s what we did:

  • Used a webcam and projector that one of us had lying around.
  • Based our project around the OpenCV implementation of structured light.
  • Implemented point cloud generation and mesh generation.
  • Designed the system to be modular and user-friendly.

To build the physical hardware setup, we connected a webcam and projector to our NVIDIA Jetson Nano; the webcam through USB, and the projector through HDMI. By connecting the camera through USB, we can use the webcam straight out of the box with plug-and-play functionality. As for the projector, we connected it via HDMI so that we could simply use it as the Jetson’s primary display device to show the light patterns.

After putting all the pieces together, we had one more task to tackle: Write the code! In retrospect, I’d say programming composed a majority of the project, and this ended up being more difficult than we could have imagined. While I had worked on computer vision software in the past, most of us had absolutely no coding experience, nor computer vision knowledge, so we ended up learning a lot throughout this process. I would recommend to anyone intending to learn about engineering to go out and build something like we did, you will gain priceless experience and learn a lot more than you would diving into “tutorial hell” or grinding LeetCode. The greatest lessons I learned from this project were:

  • Stay on top of planning and communication.
  • Address the knowledge gaps of peers by taking notes and sharing resources.
  • Learning how APIs work under the hood can make using them significantly easier.

That last lesson goes into what I would like to talk about next: OpenCV. This is an invaluable library tailored to do almost anything computer vision-related. The catch: it is written in C++, not Python. A Python binding is available, but it is automatically generated from the original C++ source code, so it has some annoying quirks. As we developed our code, we constantly ran into type errors and segmentation faults that we thought we were avoiding by using Python. Overall, the errors our code generated were unhelpful to us. To get around these troubles, we had to use all of the information at our disposal. We reviewed the vague documentation provided by OpenCV, read into the original C++ code, and searched for examples of the relevant functions being actively used. While we eventually got the system working, we could have worked so much more efficiently had we anticipated how deep we would need to research for this. If we familiarized ourselves more with OpenCV, we could have made a more organized effort to find a working solution. Luckily, we accounted for some setbacks like this in our project planning so we were still able to hit our deadline.

The result of our hard work was a structured light camera that could produce a decent output, given the ideal environmental conditions.
