django-chatbot

an exploration of how chatbots work

the deployed project: Django Chatbot

After graduating from Ohio State, I found myself with a lot of free time and a lot of skills that needed demonstrated. What better way to address these points than to start a big project with some powerful technologies?

development process

To start off this project, I devised a loose plan of how the application would run. Since most of my prior web development experience was with Flask, I decided to use Django for this project. The overall goal was to have mastered two of the most common Python web frameworks (maybe next I tackle FastAPI). As for the rest of the tech stack, I went with:

  • Serverless Hosting: Heroku
  • Data Storage: AWS S3
  • LLM API: Hugging Face

The Django app will run on an Heroku dyno, so that it can be publicly accessible. As for storing the data, it will use S3. And producing the behavior expected of a chatbot, I will use the Hugging Face Inference API. As of writing this, it is the best low-cost option for personal cloud-based LLM access since Hugging Face provides 1000 requests per day for free.

It is worth noting that I didn’t use these cloud tools in the initial development process just to play it safe with billing. Since this is my first big project with these cloud tools, I was unsure if I would hit the deadline I set for myself to have a working project: January 27th.

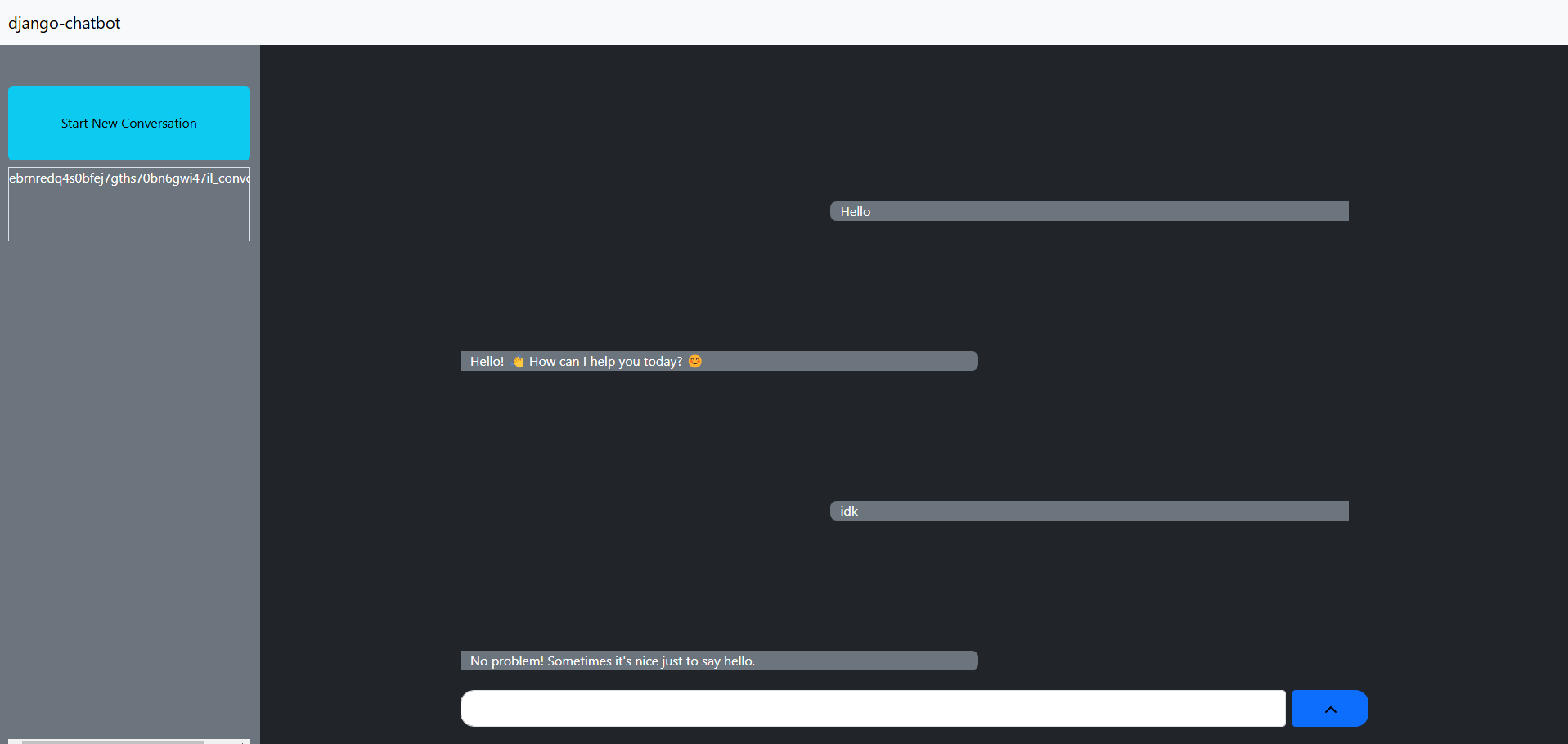

I started development with setting up the Django app and getting right into designing the view. This would feature a similar layout to existing chatbots like ChatGPT or Claude. It has a navbar, left-hand sidebar, and a standard messaging interface in the middle. Since I planned to revisit the view, I simply stopped once I could deem the interface “usable”.

After creating the view using Django’s templating capabilities and some JavaScript, I built out the backend API in Python. This involved making some high-level functions to carry out tasks like:

  • Getting a conversation given a user ID and a conversation ID.
  • Getting the most recent conversation.
  • Getting the LLM’s response to the user.
  • Getting all of the conversations for a given user.
  • Storing conversation data.
  • Updating conversation summaries.

Of course, these functions require a lot of things to happen behind the scenes, so I implemented some helper functions to handle these and other lower level tasks:

  • Creating conversations.
  • Getting conversation ID from filename.
  • Generating a conversation filename.

All of the LLM interactions are contained within two functions:

  • get_reply(user_id, convo_id)
  • update_convo_summary(user_id, convo_id)

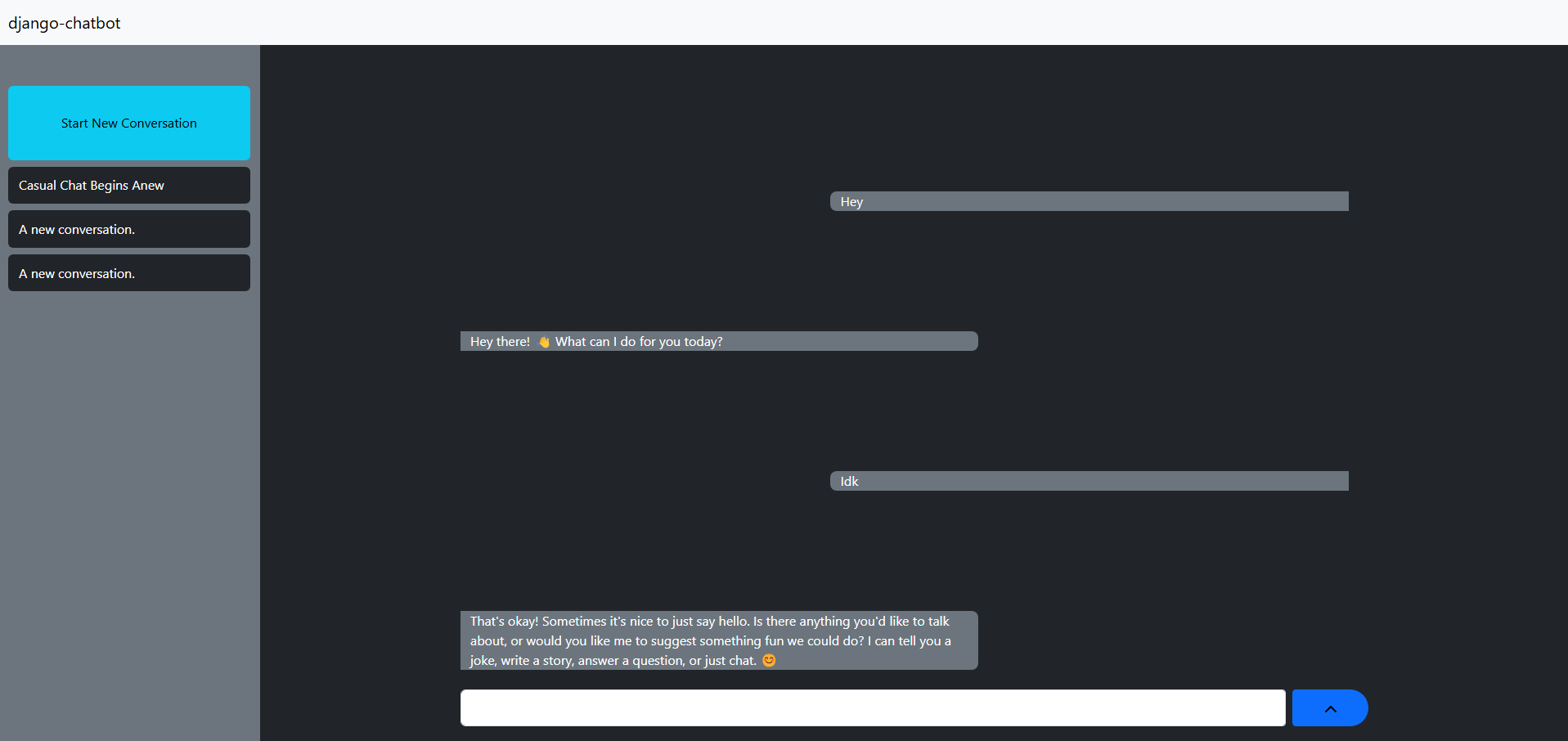

The first one, get_reply, simply initializes a Hugging Face client, gets its response to the current messages, and converts the Markdown output to HTML. update_convo_summary, on the other hand, initializes the HF client, then is given the current conversation but appended with an invisible user message: “Give this conversation a descriptive, 5-word title with no emojis”. I wrote this prompt after a bunch of trial and error to get the LLM to output something similar to ChatGPT’s sidebar summaries, but I am sure there is more refinemnent to be done to get it closer to that industry standard.

As for the LLM, I chose a Google model offered by Hugging Face, titled google/gemma-2-9b-it. This model seemed to offer good responses that weren’t all watermarked with emojis like some other models are (looking at you, Meta and 01-ai 😠). I didn’t try all of the models so I can’t guarantee that Gemma was the best choice here. With that being said, I will definitely look into some more models in the future, or, just offer a feature to choose between a wide selection of models. I think this would offer something that actually sets this chatbot apart from existing chatbots, so keep an eye out for that update.

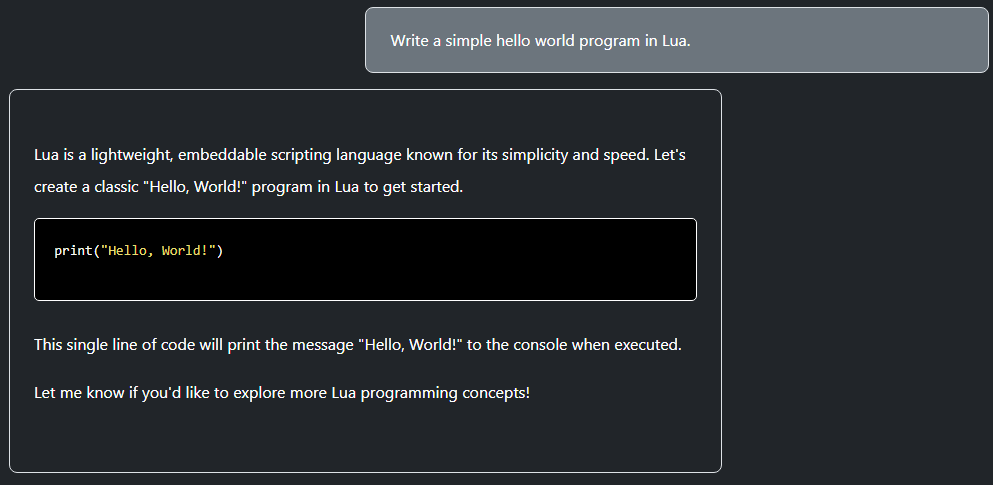

After implementing all of the essential application logic, I took some time to make the chat UI a little easier on the eyes. This first revamp was done within the existing structure I built out using Django’s templating language, Bootstrap, and JavaScript.

While the interface does just fine for this use case, I have a React project in the works using the Material UI that will make this project appear more polished.
